Cloud Control 12c (2/5) - Setup and Download Software

  • by
Cloud Control 12c (1/5) - Installation on Windows Server
After installing Cloud Control (CC), we can setup and download agent software for adding hosts. Here are the steps:
  1. Login into the cloud control.

  2. In this case, our could control entry is https://192.168.0.50:7800/em
  3. Agree to the licence.

  4. Before download softwares, you must setup the location of software library and MOS credentials.
  5. Find Setup > Provisioning and Patching > Software Library, then click.

  6. CC indicates that there is no location configured. Click [+Add].

  7. Provide a location for software library. Click [OK].

  8. CC shows the newly added location.

  9. Find Setup > My Oracle Support > Set Credentials..., then click.

  10. Provide your MOS credentials, the click [Apply].

  11. Find Setup > Extensibility > Self Update, then click.

  12. All types of software are shown, but their status are not current.

  13. Click [Check Updates] to renew the status.

  14. CC shows that the job is submitted. Click [OK].

  15. Now, the status is current. And we click "Agent Software".

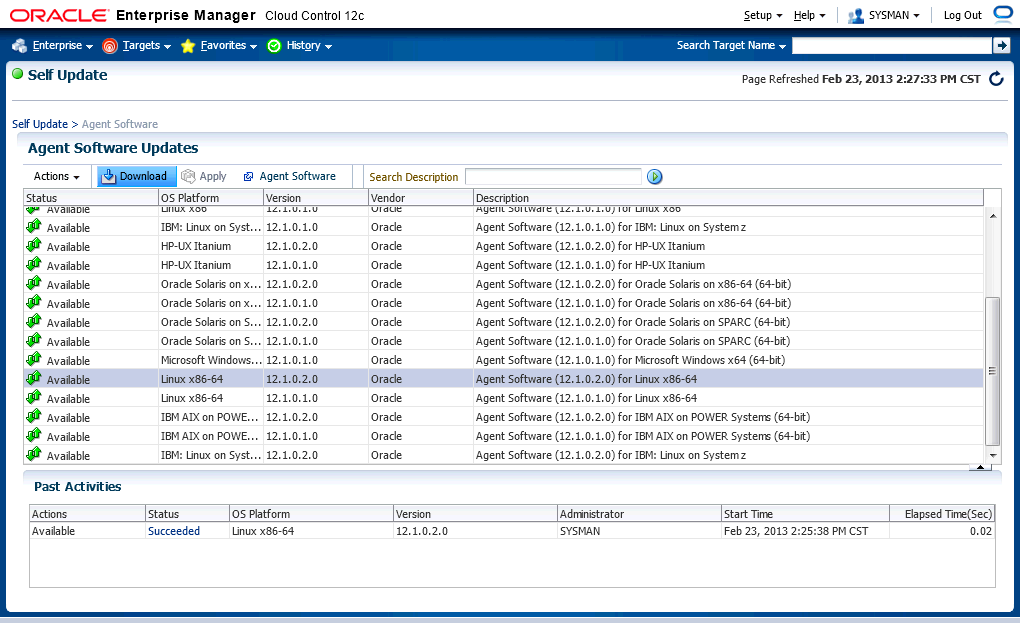

  16. There are many kinds of agent software available to update. We choose "Linux x86-64" to download and click [Download].

  17. CC will guide you to submit a job to download. We choose to download it immediately.

  18. CC shows that the job is submitted. Click [OK].

  19. Download in progress.

  20. The software is downloaded, then we click [Apply].

  21. CC indicates that it will store the software in the library. Click [OK].

  22. CC shows that the job is submitted. Click [OK].

  23. The apply job is scheduled.
  24. Finally, the software is applied.


Cloud Control 12c (3/5) - Adding Hosts
